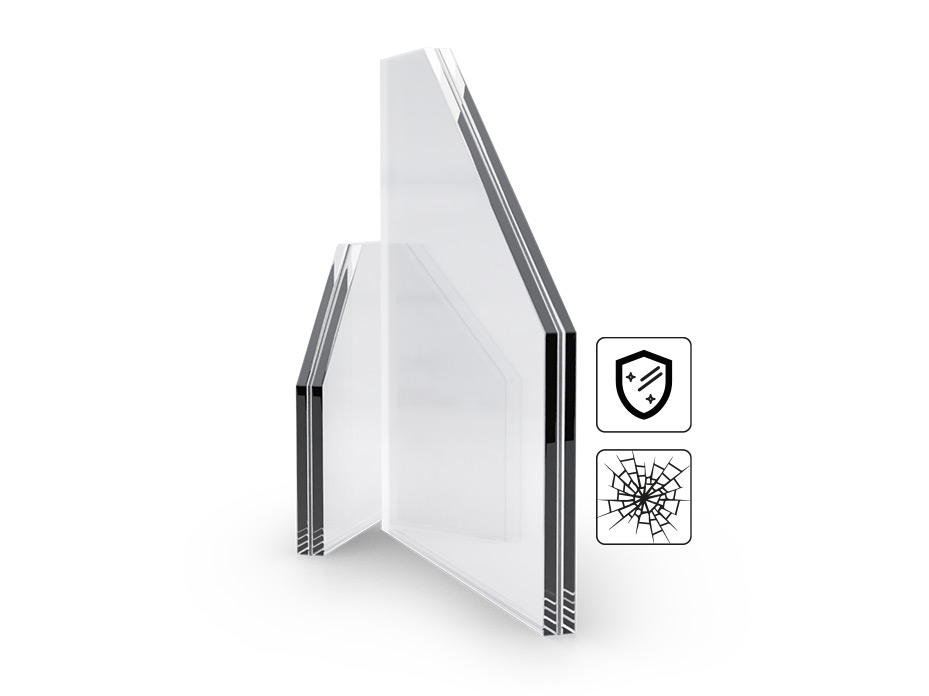

Safe Glass

Safe Glass
  • available thicknesses of ESG glass: 4, 6, 8, 10 mm
  • available thickness of the VSG glass pane: 6.38 mm (33.1) - 28 mm (in various configurations)
  • can meet certain safety conditions in accordance with EN 356 and EN 12600
  • a wide range of safety glass units

Download PDF

Laminated and / or toughened panes increase safety. Their resistance to puncture or shattering is adjusted to the customer's requirements.

VSG glass (German: Verbund Sicherheits Glas, meaning: laminated safety glass), effectively reduces the risk of burglary or theft. If broken, debris remains attached to the film, making it unlikely to be injured people around. Polyvinyl butyral (PVB) film also makes it harder to break through the glass.

Possibility to order protective glass meeting the EN 356 standard with PVB foils, which can be characterized by the resistance class P1A with the use of 33.2 glass, up to P8B with the use of 28mm thick VSG safety glass.

ESG glass (German: Einscheiben Sicherheitsglas, i.e. toughened safety glass). Thanks to the toughening method, the glass is characterized by increased resistance to shattering or breaking, as well as resistance to temperature changes. However, if it breaks, it breaks the glass into small particles with blunt edges, which minimizes the risk of injury.

Safety glass, depending on the selected thickness, is characterized by a different class in accordance with EN 12600 and / or EN 356.

The publication does not constitute a commercial offer. The presented graphic materials are for illustrative purposes only, and the actual colours and textures of the products may differ from those shown in the advertising materials. The graphics presented, including the presentation of colours, cannot constitute the basis for a complaint.

See also

Decorative Glass

Decorative Glass

  • sandblasted glass available from the thickness of 6mm

  • colored glass ESG available in a wide range of RAL
Fire Protection Glass

Fire Protection Glass

  • high mechanical resistance through the use of toughened glass

  • pendulum impact resistance (according to EN 12600) 1 / B / 1
Soundproof Glass

Soundproof Glass

  • laminate made of float / thermofloat glass and acoustic foils

  • acoustic insulation of sound-absorbing insulating glass units up to the value of Rw = 51 dB
Solar Control Glass

Solar Control Glass

  • the possibility of limiting the amount of heat entering the interior

  • the possibility of limiting the amount of light entering the interior
Glass with regulated transparency – Digi Glass

Glass with regulated transparency – Digi Glass

  • Opti White Pilkington 4mm panes

  • 0.8 EVA foil
